VAPOR
Nebulizer
The main objective here was to design a nebulizer that is discreet, does not make the user feel ill or weak while using it and is suitable for the category of target audience.
The desired outcome here was, a nebulizer that meets the key requirements and is comfortable and convenient for the target audience to use in various public places. The design should be user-friendly, discreet, and efficient in delivering the required nebulization.
Module Name: Technically Complex Product
Project Duration: 1 month
Project Category: Group Project
Mentor's Name: Aditya Lingam, Arunachalam
Dismantling / exploded view
Opening each and component of the nebulizer and understanding the technology and the mechanism of it
Key Requirements:
-
Discreet design that is not noticeable while in use
​
-
Does not cause any ill or weak feelings to the user while using it
​
-
Portable and does not require a power outlet to work
​
-
Suitable for use in public places, schools, and offices
​
-
Does not attract attention or cause any disturbance
​
-
Easy to use and maintain

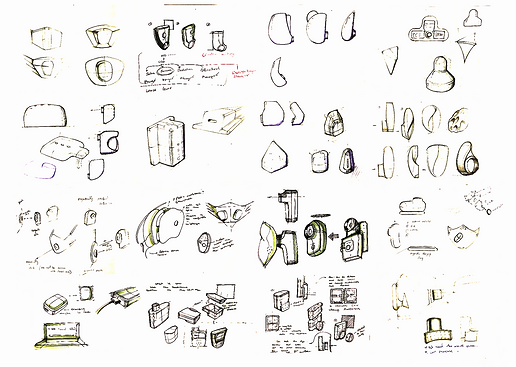

These are some brain storming ideation sketches for designing a nebulizer.
The main key here was to make the design discreet.
Concept Sketches for Mask Nebulizer
The final concept we came up with was integrating a nebulizer cartridge within a face mask that can be attachable and detachable whenever needed.
Variation Sketches for Mask
Variation Sketches for Cartridge
.png)
Inspiration board for cartridge
Taking inspiration from organic, fluid and soft looking products for the cartridge
Final Design Sketch of Mask Nebulizer
Final Cartridge Renders
.jpeg)
.jpeg)
Final Mask + Cartridge Renders
.jpeg)
Cartridge Exploded View
.png)
Process Photograph
We finally 3D printed the mask and Cartridge and designed the working of it with all the necessary electronic components, out of which POC was designed.
3D printed prototyping
Proof of Concept (POC)
Under
DESIGN REGISTRATION Process
NEBULIZER for Low-income Individuals
We have designed a nebulizer for economically disadvantaged people, where in we value engineered the nebulizer and got it down to the lowest cost as possible without adjusting the functionality and the quality of it.
We wanted to provide a subsidized nebulizer to the poor people with in the price range of Rs. 150-200
